MEIAL 1500T/M Output Horizontal Automated Anodizing Line Equipment

MEIAL 1500T/M Output Horizontal Automated Anodizing Line Equipment

一.Product Desrcription:

1. The entire production line is automated and parts are moved between individual storage tanks and dry areas using conveyor systems or robot handling. This allows for consistent, high-volume anodizing production with minimal manual labor. The line is strictly controlled and monitored to maintain strict process parameters and ensure a high quality anodizing treatment.

The entire automated production line is designed to achieve high throughput, consistent quality and minimal labor requirements. Precise control and monitoring ensure that process parameters are kept within strict tolerances.

3. The integration of these components into a fully automated system enables high-volume, consistent and efficient anodizing production with minimal human intervention. Strict control of process parameters is essential to achieve the desired anode coating performance and quality.

二. Design Condition

1. Alloy : Aluminium 6061 to 6063 or others
2. Anodizing film thinkness:10~ 12µm micron
3. Average coverage area: 350m²/T (ton)
4. Max aluminium profile length:6500mm
5. Extrusion ratio : 2.5kg/m²
6. Working hour/m: 300d/m x 20h/d = 600h/m
7. Racking system: Three fixtures /rack
8. Racking operation : Mamual
9. Equipment Usage Rate: 0.9
10. Power supply : AC 3phase 380v 50hz
11. Control Power : AC220V 50Hz
12. Water supply : 2kg/cm²·G
13. Hot steam : 6kg/cm²·G
14. Compressor air : 6kg/cm²·G

三. Process Tank

1. Degreasing 【Free sulfuric acid 180±30 g/l】 1 Tank
2. Alkaline Etching【Free alkali 40-60g/l,Al3+ 30-120g/】 2 Tanks
3. Neutralization 【Free sulfuric acid180±20g/l】 1 Tank
4. Anodising 【Free sulfuric acid 140-180g/l,Al3+≤20g/l】 5 Tanks
5. Colouring 【stannous sulfate 3-8g/l,Free sulfuric acid 15-25g/l,PH 0.8-1.2】 3 Tanks
6. Medium Temperature Sealing【PH 5-6.5,Nickel ion0.8-1.3g/l,Fluorion0.3-0.7 g/l】 3 Tank

四.Treatment Process:

1. Degreasing
   (1) 6jig(rack)/ tank x 1 tank=6jig(rack)
   (2) treatment time: 2-5min
2. Alkaline Etching
   (1) 6jig(rack) / tank x 2 tank=12jig(rack)
   (2) treatment time: 3-15min
3. Neutralization
   (1) 6jig(rack) / tank x 1 tank=6jig(rack)
   (2) treatment time: 1-5min
4. Anodizing
   (1) 3 jig(rack)/tank x 5tanks = 15jig(rack)
   (2) Current density: 130A/m²
   (3) Process time: 30min
   (4) Unprocess time: 10min
   (5) Total time 30+10=40min

(6) Average anodizing layer : 0.36*1.3*30*0.77 =10.81um

5. Colour 1

1) Clour process: Mix Salts

2) Quantity:3 jig(rack)/tank x 1tanks = 3jig(rack)

3) Current density: 70A

4) Process time: 2-8min

6. Sealing
1) Sealing menthod: Sealing at Medium or Normal Temperature
2) Quantity:6jig(rack)/tank x 1 tank
3) Process time 10-15min

五. Design Parameter and Setting

1. Anodizing treatment area:
1) Each anodizing process tank need 40min ,where total jig(rack)/year:​

( 3 rack x 5 tank x 60min/h) ÷40min x600 hour =13500jig(rack)

2) Design 50m²^/jig(rack) . Where every tank is 100m²
3) Area treatment/year : 13500jig(rack)x 50m² /jig =675000m²

2. Anodizing treatment weight:
Monthly output : 675000m²÷350m²/T*0.9=1735T≧1500T

3. Power consumption:
1) Anodising Tank:100m²/tank* 130A/ m²÷0.9=14444A/tank

Power Rectifier : 15000A =3unit
2) Clouring tank: 100㎡/tank×70A/m²÷0.9 = 7777A/tank

Colour Rectifier : 8000A =3 unit

六. Process Chat

Discription for Un

七.Composition and description of the automatic control system

This system is applicable to the semi-automatic production line of aluminum oxide anodization. According to its process specifications, the system is planned to adopt an upper computer monitoring and management system (composed of an industrial control computer IPC), a lower computer control execution system (PLC), detection components, and execution devices. There are two operation modes in terms of operation: manual and semi-automatic. When the system is running normally, it is semi-automatic. Based on the input of feeding data, the crane can identify the slot position in semi-automatic mode and execute corresponding oxidation, coloring and other processes. The temperature of the slot liquid meets the process requirements in semi-automatic control. In semi-automatic mode, the single step operation of the crane and related equipment can be controlled in the central control room. In manual mode, the operation can be carried out through on-site operation buttons.

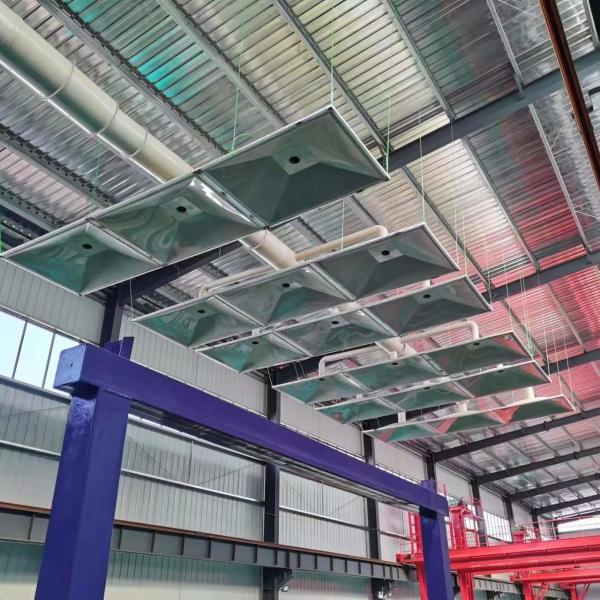

MEIAL 1500T/M Output Horizontal Automated Anodizing Line Equipment Images
